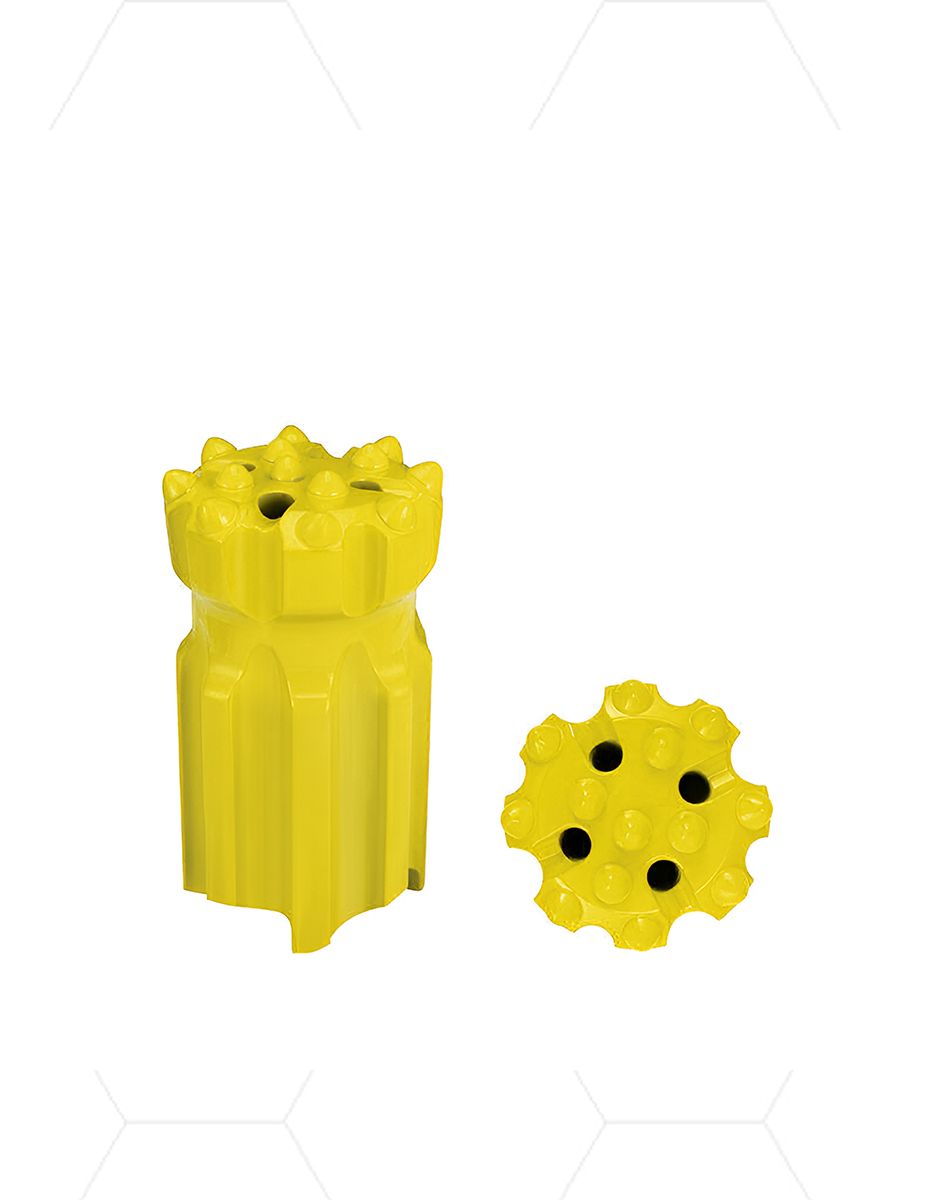

Retrac Thread Bit
Competitive Advantage:
High strength chromium-molybdenum steel with high fatigue strength
and excellent wear resistance, High grade tungsten carbide inserts.
Keywords:
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit,
Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools.
Competitive Advantage:
1. High grade tungsten carbide inserts
2. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
(rock drill bits)
| NO.Button size | NO.Flushing Holes (PCS) | ||||||||

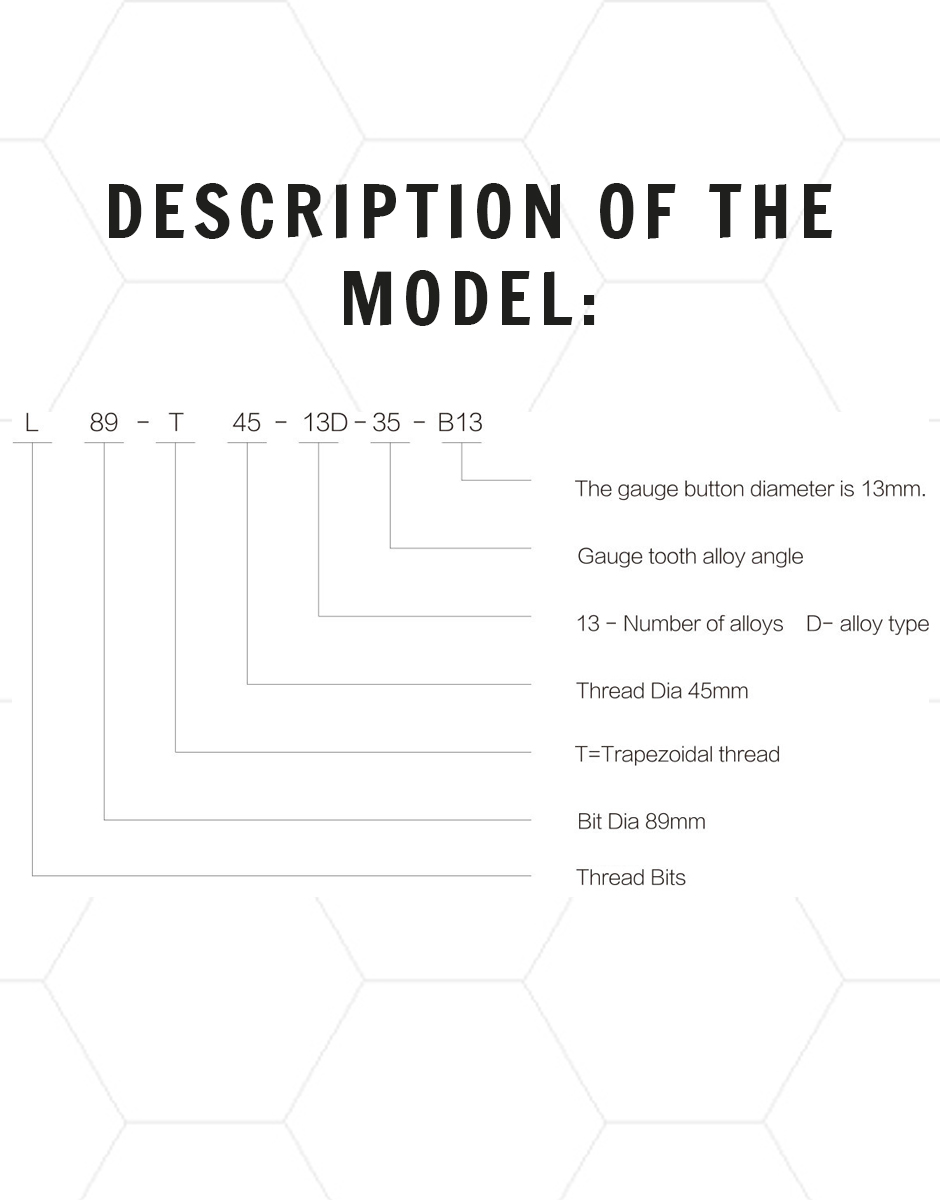

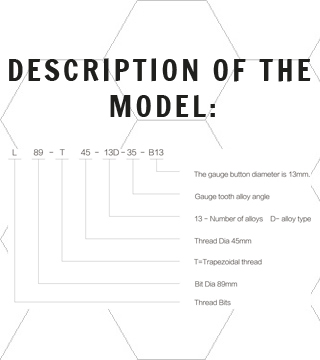

| Number | Model | Bit Dia.(mm) | Thread | Gauge | Front | Gauge tooth angle | Side | Front | Weight (KG) |
| L001 | L33-R22-7D-35-B7 | 33 | R22 | 5×7 | 2×7 | 35° | 2 | 1 | 0.4 |
| L002 | L35-R25-7D-35-B8 | 35 | R25 | 5×8 | 2×7 | 35° | 2 | 1 | 0.4 |
| L003 | L38-R25-7D-35-B8 | 38 | R25 | 5×8 | 2×7 | 35° | 1 | 2 | 0.5 |
| L004 | L41-R25-7D-35-B9 | 41 | R25 | 5×9 | 2×8 | 35° | 1 | 2 | 0.55 |
| L005 | L41-R28-7D-35-B9 | 41 | R28 | 5×9 | 2×8 | 35° | 1 | 2 | 0.55 |
| L006 | L41-R32-7D-35-B9 | 41 | R32 | 5×9 | 2×9 | 35° | 2 | 1 | 0.55 |
| L007 | L43-R32-9D-30-B9 | 43 | R32 | 6×9 | 3×8 | 30° | 1 | 2 | 0.67 |
| L008 | L45-R28-9D-35-B10 | 45 | R28 | 6×10 | 3×8 | 35° | 3 | 1 | 0.8 |
| L009 | L45-R32-9D-30-B10 | 45 | R32 | 6×10 | 3×8 | 35° | 2 | 1 | 0.8 |
| L010 | L45-R32-9D-35-B9 | 45 | R32 | 6×9 | 3×8 | 30° | 1 | 3 | 0.8 |
| L011 | L45-R32-9D-35-B10 | 45 | R32 | 6×10 | 3×8 | 35° | 1 | 3 | 0.8 |
| L012 | L48-R32-9D-35-B10 | 48 | R32 | 6×10 | 3×9 | 35° | 1 | 3 | 0.9 |
| L013 | L51-R32-9D-35-B10 | 51 | R32 | 6×10 | 3×9 | 35° | 1 | 3 | 1.1 |
| L014 | L57-R32-9D-35-B11 | 57 | R32 | 6×11 | 3×10 | 35° | - | 3 | 1.3 |
| L015 | L64-R32-9D-40-B11 | 64 | R32 | 6×12 | 3×11 | 40° | 2 | 1 | 1.6 |
| L016 | L64-R32-12D-35-B10 | 64 | R32 | 8×10 | 4×10 | 35° | 2 | 2 | 1.6 |
| L017 | L64-R38-9D-35-B12 | 64 | R38 | 6×12 | 3×11 | 35° | 2 | 1 | 1.6 |
| L018 | L76-R32-12D-35-B11 | 76 | R32 | 6×12 | 6×12 | 35° | 1 | 2 | 2.7 |
| L019 | L76-R32-12D-35-B12 | 76 | R32 | 8×12 | 4×12 | 35° | 2 | 2 | 2.7 |
| L020 | L76-R38-12D-35-B12 | 76 | R38 | 8×12 | 4×12 | 35° | 2 | 2 | 2.3 |
| L021 | L89-R32-13D-35-B13 | 89 | R32 | 8×13 | 5×12 | 35° | - | 3 | 2.9 |
| L022 | L89-R38-13D-35-B13 | 89 | R38 | 8×13 | 5×12 | 35° | 2 | 2 | 3.3 |
| L023 | L102-R32-15D-35-B12 | 102 | R32 | 14×12 | 1×11 | 35° | 2 | 3 | 3.5 |
