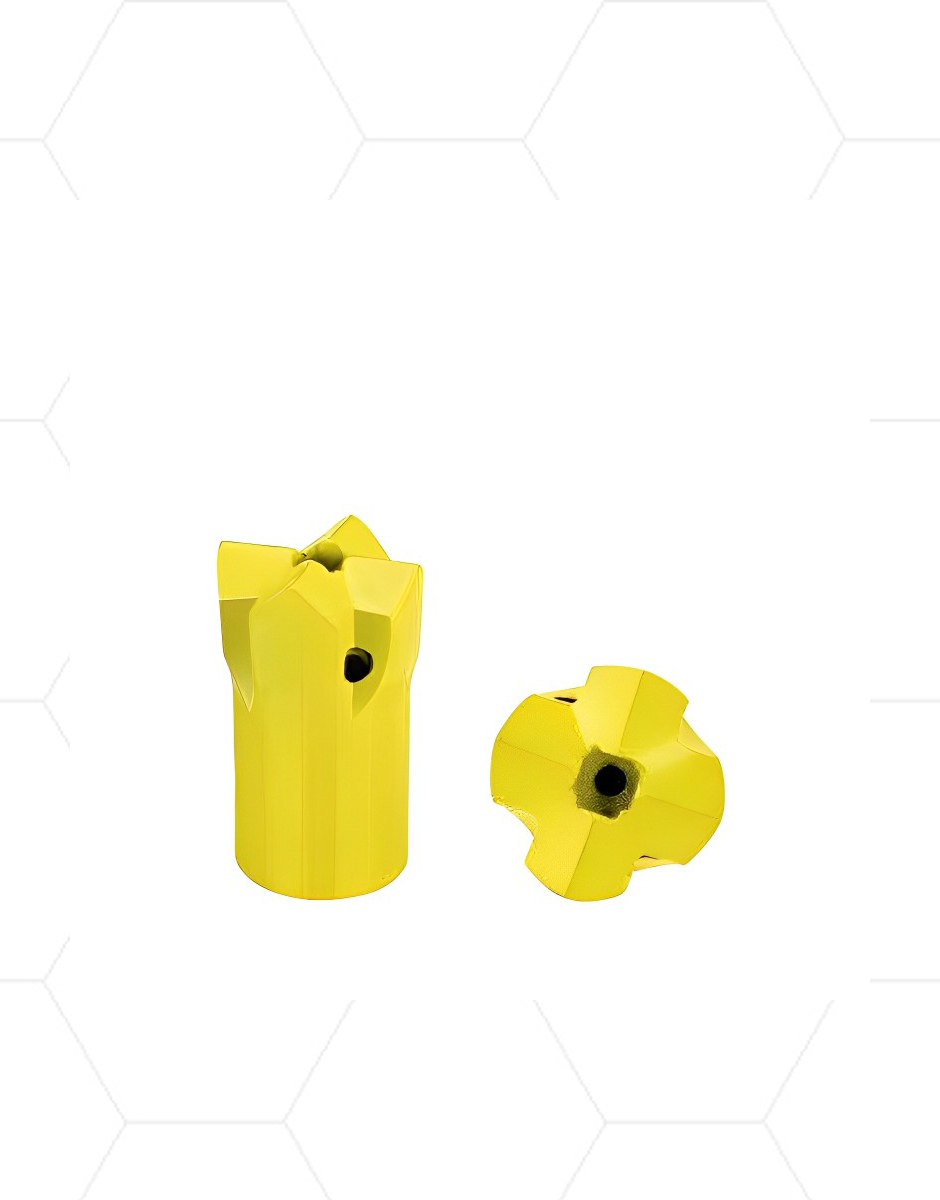

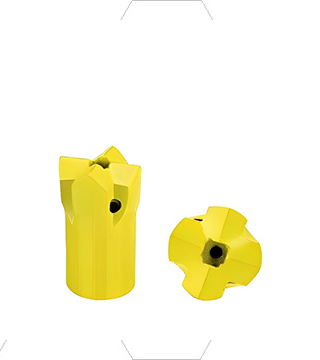

Tapered Connection Chisel Bit

Chisel Bit manufacturers in India

Usage:
Taperchisel bit is use for tunneling, mining, quarrying, well drilling, mining drilling, ore drilling.
Design: chisel and cross design
Taper Angle (Degree): 7degree, 11degree, 12degree
Size: 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 46mm, 48mm, 50mm, 55mm, 60mm, 70mm, 80mm
Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

Keywords:
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools.

Why Choose Us:
1. Tapered button bits connect with tapered drill rod perfectly for drilling holes
2. Stable and mature welding technology ensure high quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. Work reliable and very cost-effective
5. High grade tungsten carbide inserts
6. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Cross type bit::

Number Model Bit Dia.(mm) Taper×diam Weight (KG)
S001 S32-722 32 7°×22mm 0.23
S002 S34-722 34 7°×22mm 0.25
S003 S36-722 36 7°×22mm 0.29
S004 S38-722 38 7°×22mm 0.33
S005 S40-722 40 7°×22mm 0.38
S006 S42-722 42 7°×22mm 0.41
S007 S46-722 46 7°×22mm 0.46
S008 S50-722 50 7°×22mm 0.54
S009 S60-722 60 7°×22mm 0.7
