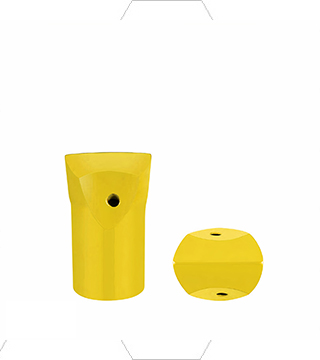

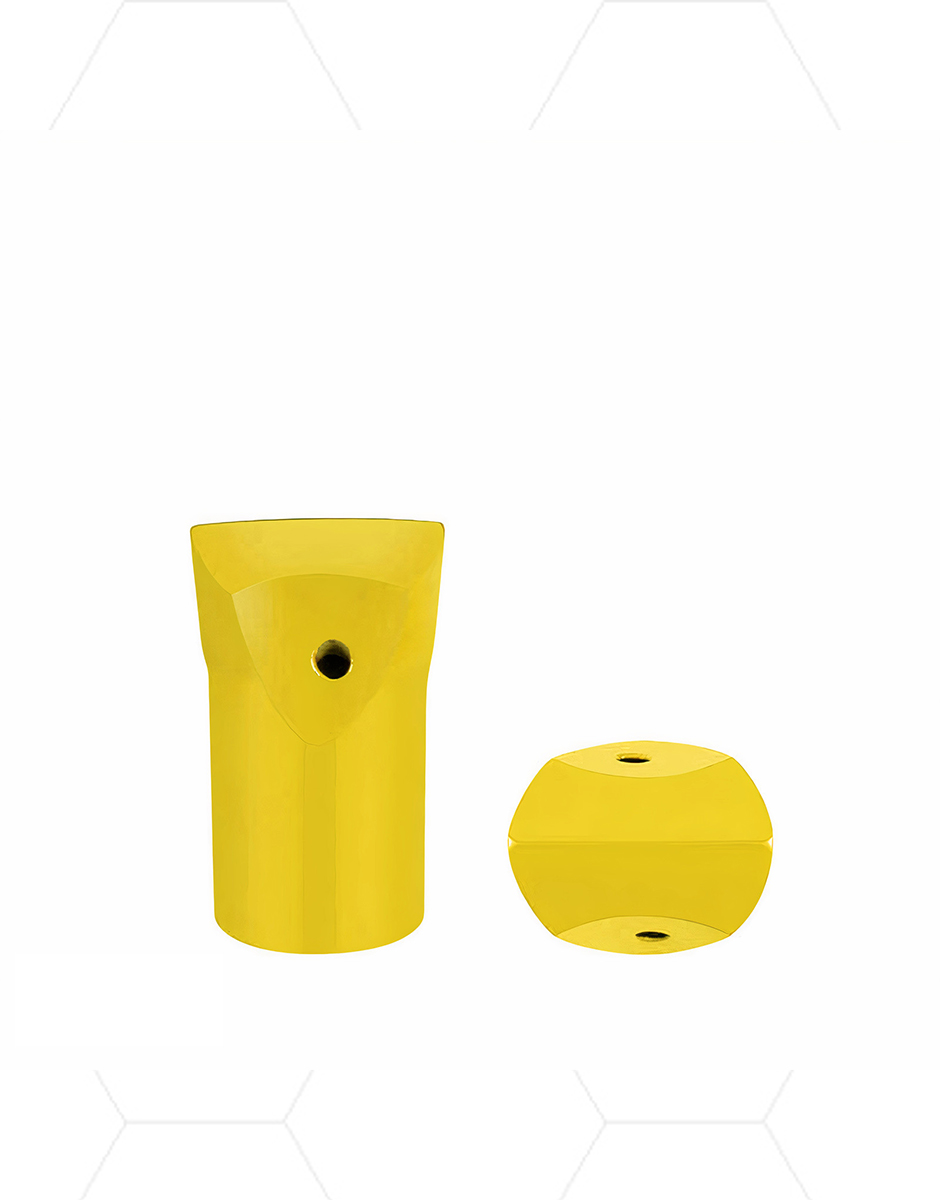

Tapered Connection Chisel Bit

Best Tapered Chisel bits Manufacturer in India

Usage:
Taperchisel bit is use for tunneling, mining, quarrying, well drilling, mining drilling, ore drilling.
Design: chisel and cross design
Taper Angle (Degree): 7degree, 11degree, 12degree
Size: 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 46mm, 48mm, 50mm, 55mm, 60mm, 70mm, 80mm
Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

Keywords:
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools.

Why Choose Us:
1. Tapered button bits connect with tapered drill rod perfectly for drilling holes
2. Stable and mature welding technology ensure high quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. Work reliable and very cost-effective
5. High grade tungsten carbide inserts
6. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Horse type bit:

Number Model Bit Dia.(mm) Taper×diam Weight (KG)
Y001 Y28-719 28 7°×19mm 0.18
Y002 Y30-719 30 7°×19mm 0.19
Y003 Y32-722 32 7°×22mm 0.22
Y004 Y34-722 34 7°×22mm 0.23
Y005 Y36-722 36 7°×22mm 0.26
Y006 Y38-722 38 7°×22mm 0.3
Y007 Y40-722 40 7°×22mm 0.39
Y008 Y42-722 42 7°×22mm 0.4
Y009 Y46-722 46 7°×22mm 0.45
Y010 Y50-722 50 7°×22mm 0.52
Y011 Y60-722 60 7°×22mm 0.66
Y012 Y70-722 70 7°×22mm 0.8
Y013 Y80-722 80 7°×22mm 1.0
Y014 Y90-722 90 7°×22mm 1.3
Y015 Y100-722 100 7°×22mm 1.6
