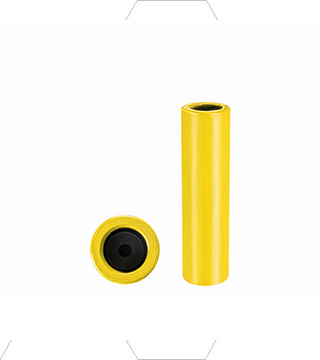

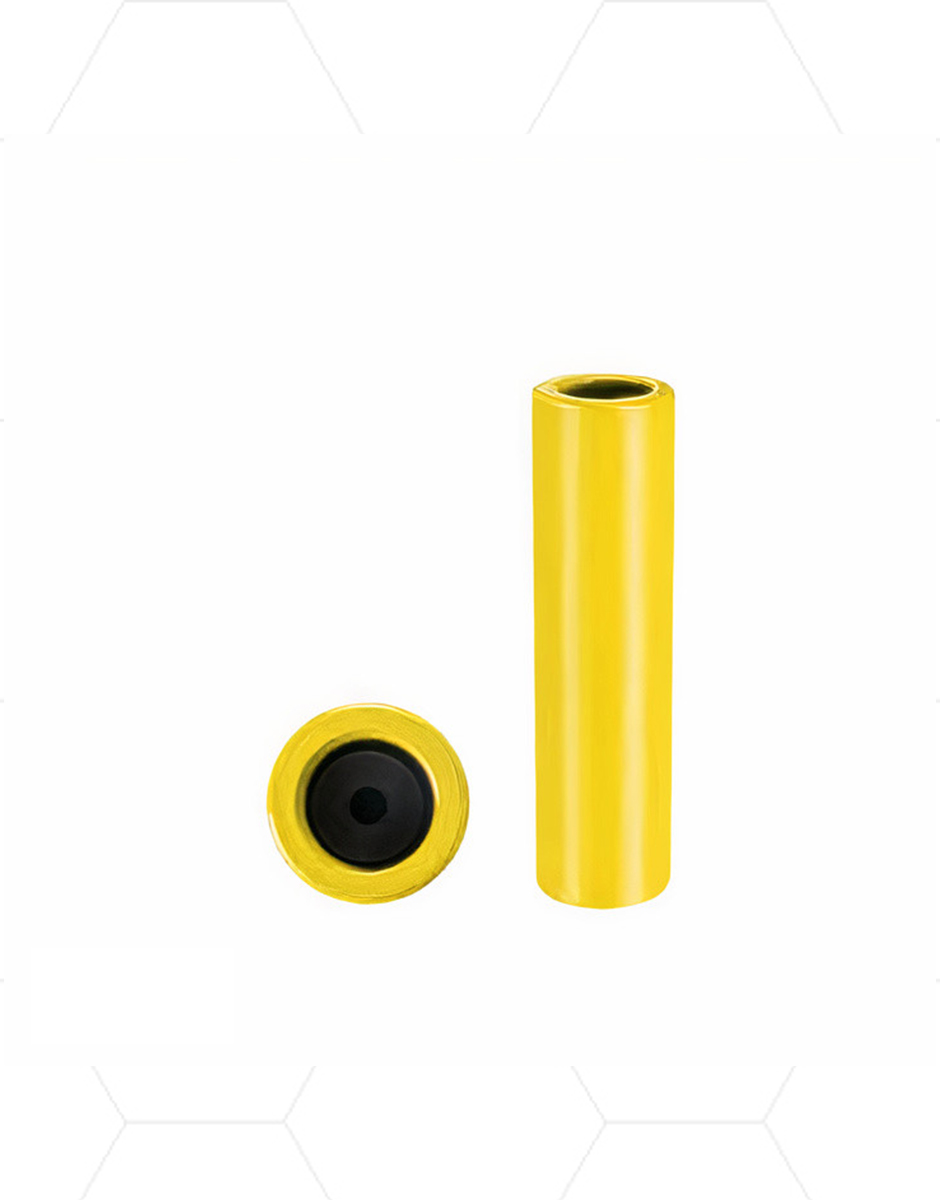

Shank Adapter, Coupling Sleeve, Drill Rod
Jayalakshmi drill high quality top hammer rock drilling tools,which are widely use in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.
USES:
High quality top hammer rock drilling tools,which are widely use in mines, quarries, earthworks and other
engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal
exploration hole, Well bore and other fields.
| Outside diameter | Length | |||||

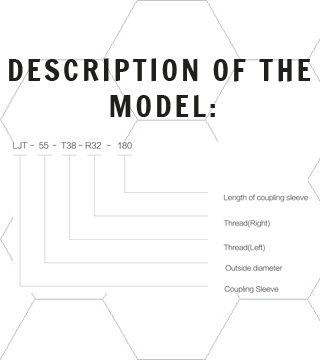

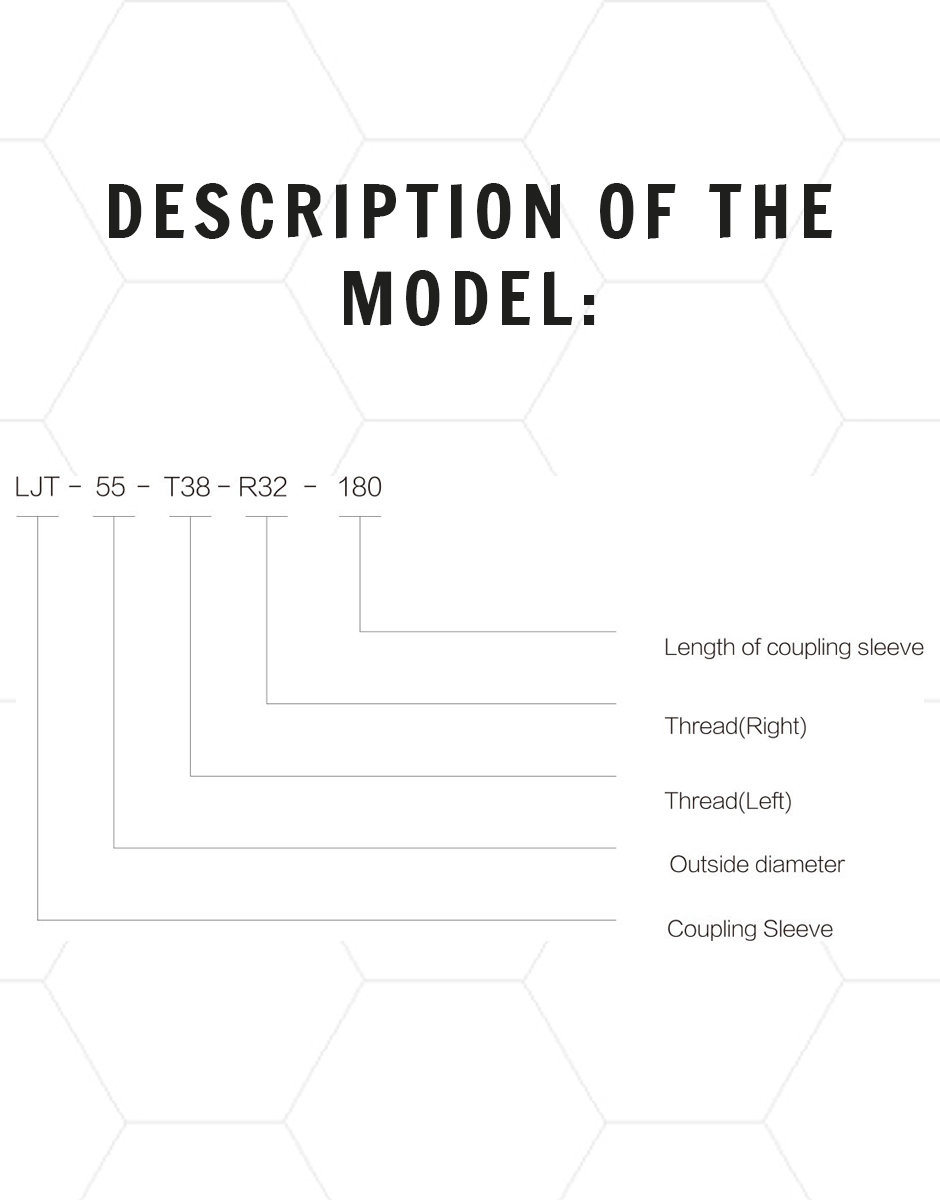

| Number | Model | mm | in | mm | in | Weight(KG) |
| LJT001 | LJT-45-R32-R25-170 | 45 | 1 3/4" | 170 | 6 57/64" | 1 |
| LJT002 | LJT-45-R32-R28-170 | 45 | 1 3/4" | 170 | 6 57/64" | 0.95 |
| LJT003 | LJT-55-R38-R65-180 | 55 | 2 5/32" | 180 | 7 1/8" | 1.85 |
| LJT004 | LJT-55-T38-R32-180 | 55 | 2 5/32" | 180 | 7 1/8" | 2 |
| LJT005 | LJT-55-T38-R38-190 | 55 | 2 5/32" | 190 | 7 33/64" | 1.85 |
| LJT006 | LJT-55-R38-170 | 55 | 2 5/32" | 170 | 6 57/64" | 1.7 |
| LJT007 | LJT-55-T38-190 | 55 | 2 5/32" | 190 | 7 33/64" | 1.95 |
| LJT008 | LJT-63-T45-210 | 63 | 2 15/32" | 210 | 8 17/64" | 3.1 |
| LJT009 | LJT-66-T45-210 | 66 | 2 19/32" | 210 | 8 17/64" | 3.5 |
| LJT010 | LJT-72-T51-235 | 72 | 2 7/8" | 235 | 9 1/4" | 5.2 |
| LJT011 | LJT-76-T51-235 | 76 | 3" | 235 | 9 1/4" | 5.7 |
|
Items |
|
CouplingT38-R32 195mm |
|
Coupling T38-T38 190mm |
|
Coupling R32-R32 170mm |
|
Shank adapter cop1838HD T38-435mm |
|
Shank adapter COP1838HD T38-525mm |
|
Shank adapter HLX5 T38-500mm |
|
Shank adapter VL140 T38-380mm |
|
Shank adapter PD200 T38-380mm |
|
Shank adapter HD709 T45-620mm |
|
Shank adapter MONHC-120T38O45/490 |
