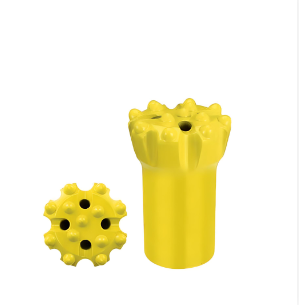

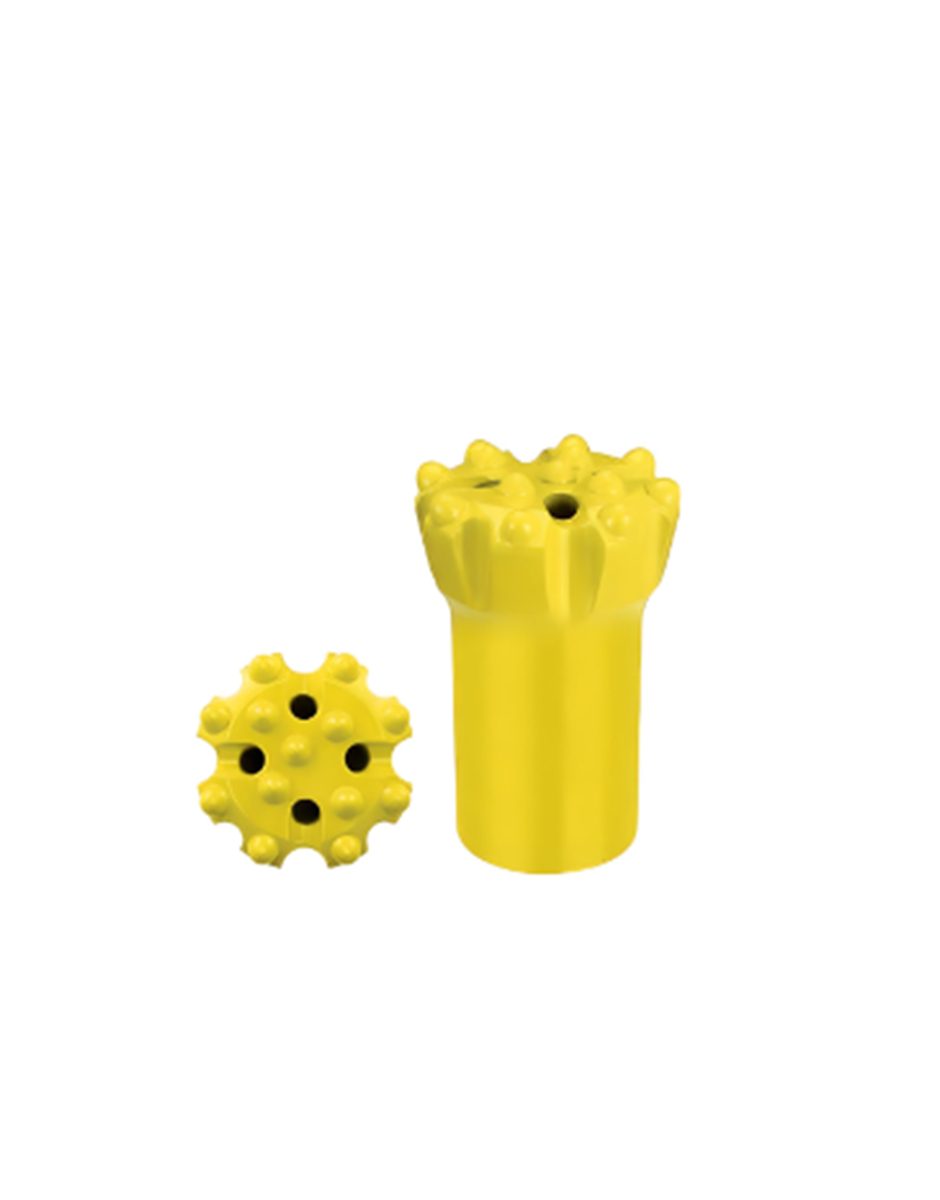

Thread Button Bit
Products Introduction:
Jayalakshmi drill bitT type top hammer drill bits include thread connection of
T38,T45,T51,T60,GT58,ST58,GT60,GT68.
The main diameter that is 64mm,76mm,89mm,102mm,115mm,127mm,146mm.(2.5inch,3inch,3.5inch,4inch,4.5inch,5inch)
Applications:
R25, R28, R32, R38 | Used in drifting and tunneling.
T38, T45, T51, ST58, ST68 | Used in benching and long hole drilling.
Processing:
CNC milling and proprietary heat treatment process.
Competitive Advantage:
High strength chromium-molybdenum steel with high fatigue strength
and excellent wear resistance, High grade tungsten carbide inserts.
Keywords:
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit,
Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools.
Button Bit and Insert Types | Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions.
Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions
Competitive Advantage:
1. High grade tungsten carbide inserts
2. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
(thread hydraulic drill bits)
| NO.Button size | NO.Flushing Holes (PCS) | ||||||||

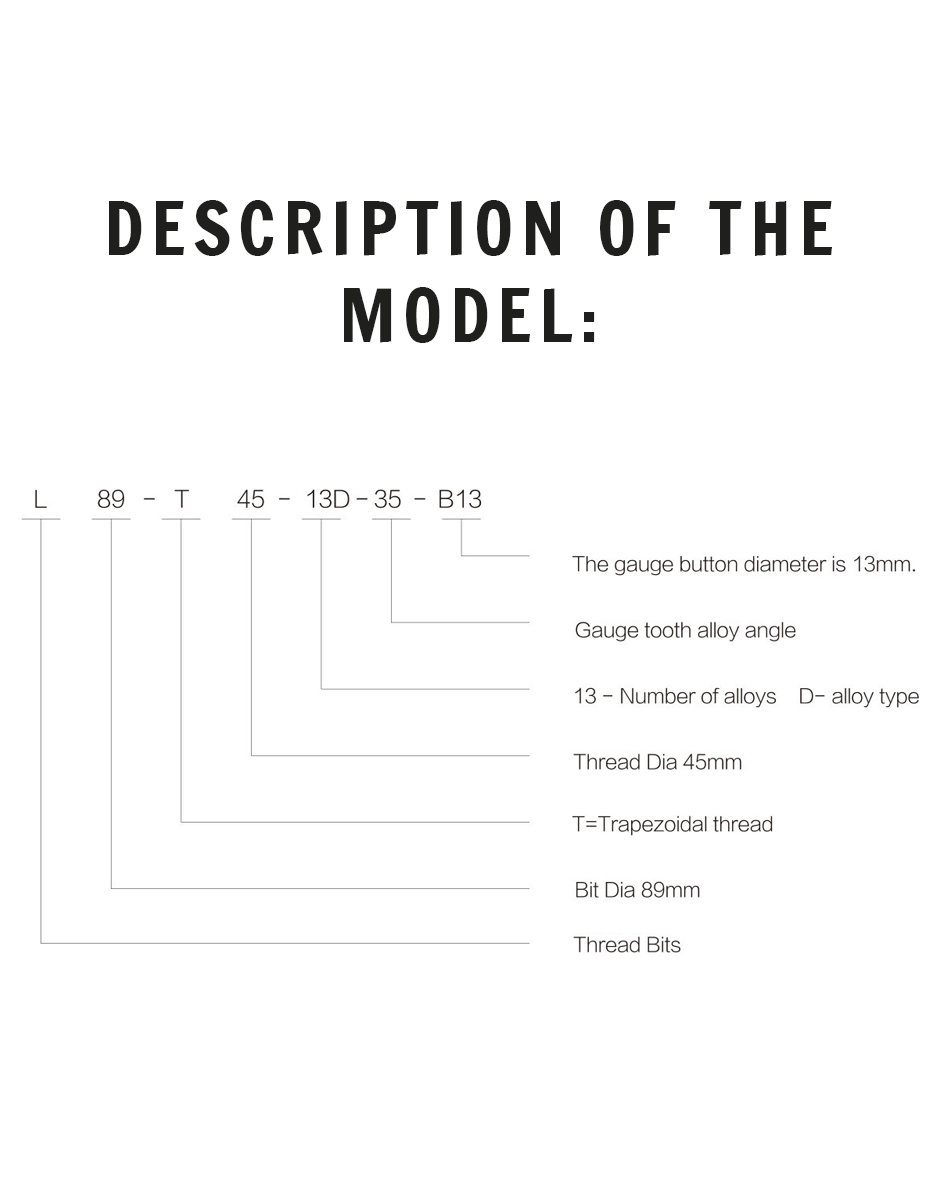

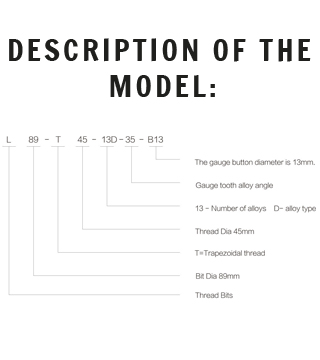

| Number | Model | Bit Dia.(mm) | Thread | Gauge | Front | Gauge tooth angle | Side | Front | Weight (KG) |
| L024 | L64-T38-9D-40-B12 | 64 | T38 | 6×12 | 3×11 | 40° | 2 | 1 | 1.6 |
| L025 | L64-T38-10D-35-B12 | 64 | T38 | 6×12 | 3×11 1×9 |
35° | 3 | 1.6 | |
| L026 | L64-T38-12D-35-B10 | 64 | T38 | 8×10 | 4×10 | 35° | 1 | 2 | 1.6 |
| L027 | L76-T38-12D-35-B12 | 76 | T38 | 8×12 | 4×12 | 35° | 1 | 4 | 2.4 |
| L028 | L76-T38-10D-40-B13 | 76 | T38 | 6×13 | 4×12 | 40° | 1 | 2 | 2.45 |
| L029 | L76-T45-12D-35-B12 | 76 | T45 | 8×12 | 4×12 | 35° | 1 | 4 | 2.5 |
| L030 | L76-T45-13D-35-B12 | 76 | T45 | 8×12 | 5×11 | 35° | 1 | 4 | 2.5 |
| L031 | L89-T38-14D-35-B12 | 89 | T38 | 8×12 | 4×12 2×10 |
35° | 4 | 3 | |
| L032 | L89-T38-13D-35-B13 | 89 | T38 | 8×13 | 5×12 | 35° | 1 | 4 | 3.25 |
| L033 | L89-T45-14D-35-B13 | 89 | T45 | 8×13 | 4×12 2×10 |
35° | 4 | 3.3 | |
| L034 | L89-T45-13D-35-B13 | 89 | T45 | 8×13 | 5×12 | 35° | 1 | 4 | 3.4 |
| L035 | L89-T51-14D-35-B13 | 89 | T51 | 8×13 | 4×12 2×10 |
35° | 4 | 3.4 | |
| L036 | L89-T51-13D-35-B13 | 89 | T51 | 8×13 | 5×12 | 35° | 4 | 3.4 | |
| L037 | L92-GT60-14D-35-B14 | 92 | GT60/ TW60 |
8×14 | 6×12 | 35° | 4 | 5.8 | |
| L038 | L102-T45-14D-35-B14 | 102 | T45 | 8×14 | 4×12 2×10 |
35° | 4 | 4.2 | |
| L039 | L102-T45-18D-35-B13 | 102 | T45 | 9×13 | 9×11 | 35° | 3 | 4.3 | |
| L040 | L102-T51-14D-35-B14 | 102 | T51 | 8×14 | 4×12 2-11 |
35° | 4 | 4.2 | |
| L041 | L102-T51-18D-35-B13 | 102 | T51 | 9×13 | 9×11 | 35° | 3 | 4.5 | |
| L042 | L102-GT60-18D-35-B14 | 102 | GT60/ TW60 |
9×14 | 9×12 | 35° | 3 | 6.5 | |
| L043 | L115-T45-15D-35-B14 | 115 | T45 | 8×14 | 4×14 3×12 |
35° | 4 | 5.5 | |
| L044 | L115-T45-19D-35-B14 | 115 | T45 | 9×14 | 10×12 | 35° | 3 | 5.8 | |
| L045 | L115-T51-16D-35-B14 | 115 | T51 | 8×14 | 4×14 4×12 |
35° | 4 | 5.5 | |
| L046 | L127-T45-19D-35-B15 | 127 | T45 | 9×15 | 10×13 | 35° | 3 | 7.1 | |
| L047 | L165-GT60-21D-35-B16 | 165 | GT60/ TW60 |
9×16 | 12×16 | 35° | 3 | 15 | |
| Product Name | Thread Rock Drill Bit |
|---|---|
| Thread | R25,R28,R32,R38,T38,T45,T51,ST58, ST68 |
| Diameter | 32mm-152mm (or 1 1/4 inch to 6 inch) |
| Drill Bit Type | Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit |
| Carbide Insert | Spherical and ballistic |
| Body Design | Normal body and retrac body |
| Face Design | Flat face and drop center face |
| Material | High strength alloy steel bar and tungsten carbide |
| Color | Green, Gold, Black or based on customer requirements. |
